ECS-4 Handheld Rotating Bolt Hole Scanner

Kennewick, WA – March 29, 2023 – UniWest announces the introduction of the new ECS-4 Handheld Rotating Bolt Hole Scanner.

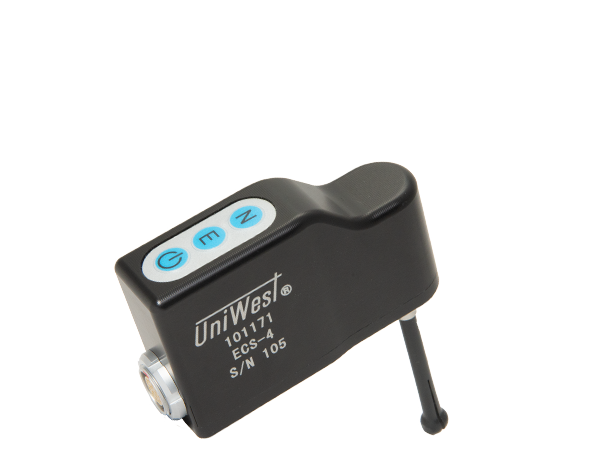

The new ECS-4 scanner is very lightweight (7 oz) and has an ergonomic form-factor with the probe exiting at a right-angle from the scanner. In addition, the ECS-4 boasts variable speed (125 – 2,250 RPM) and increased torque over UniWest’s popular ECS-1 scanner. Three buttons are within easy reach of the user’s thumb: Null, Erase and On/Off.

The ESC-4 scanner utilizes a rotary transformer to couple eddy current signals from the probe to the instrument. Compatible instruments include the UniWest EVi, EddyView® II, EddyView® Pro and EddyView® Premium. In addition, the ECS-4 will operate on the NORTEC® 600 and NORTEC® 2000. The ECS-4 probe connector is a 4-pin Fischer connector with O-rings. Compatible probes include the following UniWest probe styles:

• URB
• URBA
• US-5000
• SSB probes
• As well as some competitor’s probes.

Click HERE for a comparison of all UniWest handheld scanners.
